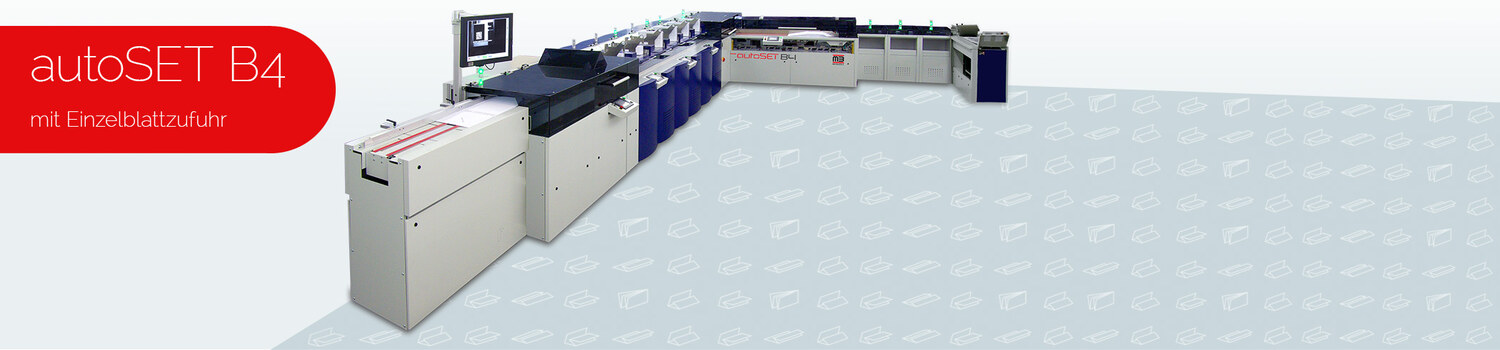

autoSET B4 / autoSET B4 HighFLEX

Automatic and highly flexible - the new line of inserting systems autoSET B4.

The new autoSET B4 line of inserting systems features a high degree of variability combined with top-level operator convenience. The inserting system handles all formats from DL to B4.

The modular design makes it possible to adapt the inserting system at any time to the individual needs of the customer. With feeding systems for cut sheet or continuous forms, the autoSET B4 can either be used as a system machine or for the realization of complex tasks. The document track is also of modular design and can be extended to 12 insert stations. Depending on the type of inserts, various kinds of feeders are available as insert feeders, such as suction, friction or rotary feeders. This guarantees the smooth handling of a large variety of materials. Different camera systems for all common readings such as OMR, barcode or datamatrix can be used. As an option, it is possible to integrate addressing and postage meter modules as well as stitching devices in the system.

The comprehensive automation is an outstanding feature of the autoSET technology. All important settings are made by means of the ergonomically positioned touch screen display. Manual settings, that are normally necessary when changing a job, are almost completely automated. A simple touch is sufficient for calling up a job from the memory and the setting automation sets up all relevant modules.

Inserting system autoSET B4
Speedmax. 14,000 cycles/h (DL)
max. 10,000 cycles/h (C4/B4)

Envelopes

min. height x width105 x 220 mm
max. height x width254 x 353 mm
Envelope weightup to 120 GSM
Thickness of insertsmax. 15 mm
Inserts
min. height x width60 x 130 mm
max. height x width216 x 305 mm
Paper weight60 - 200 GSM
Feeder capacityup to 3,000 sheets
Inserting System autoSET B4 HighFLEX
Speedmax. 22,000 cycles/h (DL)
max. 12,000 cycles/h (C4/B4)
Envelopes
min. height x width105 x 220 mm
max. height x width254 x 353 mm
Envelope weightup to 120 GSM
Thickness of insertsmax. 15 mm
Inserts
min. height x width60 x 130 mm
max. height x width216 x 305 mm
Paper weight60 - 200 GSM
Feeder capacityup to 3,000 sheets

      Other innovative solutions for more productivity:

  • Large variety of formats and materials
  • Flexible finishing
  • Simple operation because of automatic settings
  • Minimum set-up times
  • High degree of modularity
  • Operator-friendly system layout and good accessibility
  • Gentle material transport through servo technology
    (completely driven by servo motors)

    Optional equipment for maximal flexibility:
  • Modular feeding systems
  • 4-fold-plate fold unit
  • Collector
  • Addressing module
  • Postage meter modules
  • Stitching devices
  • Diverter
  • Code matching
  • Integrity control
  • Monitoring
  • Reporting
Flexible feeding options
Feeding options
Simple operation by means of a touch-screen panel
Operation
High-performance feeding systems
Feeding systems
Wide range of materials
Materials
Modular document track
Document track
Envelope loader with high capacity
Envelope loader
