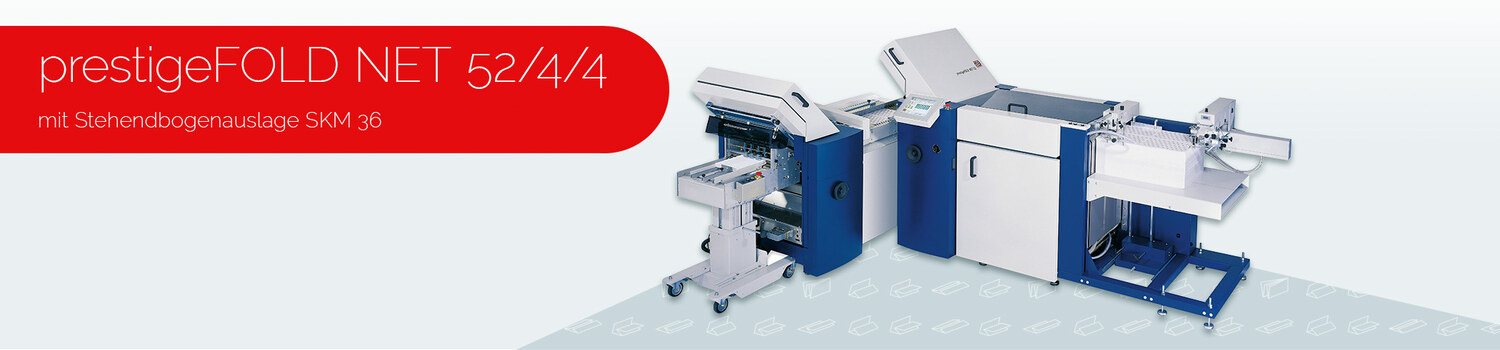

  • 52 4 4 SKM

  • 52 4 4 Schwert en

  • 52 6 en

prestigeFOLD NET 38 / 52

Simple operation, very short set-up times and optimal results through fully automatic setting from feeder to delivery.

Starting with the unfolded sheet size, the chosen type of fold and the paper thickness measured by the paper thickness sensor, the computer control calculates the positions of the various setting elements and adjusts them accordingly.

Intelligent machine control and touch screen operation simplify the folding process. The central touch screen panel is the interactive operator interface where all important settings are made. Manual interference is reduced to a minimum. The operator guidance is self-explanatory. The operator knows at any time which menu is active and which options are still available. Through an interface prestigeFOLD allows integration into in-plant networks. This is the basis for transfer of data to the machine by means of a JDF-file or for production data acquisition.

Automatic settings for:

  • Feeders
  • Fold plates
  • Deflectors
  • Alignment rails
  • Fold rollers
  • Deliveries
Folding machine prestigeFOLD NET 38
max. paper size38 x 65 cm (PBA)
38 x 75 cm (FSA)
min. min size7 x 12 cm (PBA)
10 x 12 cm (FSA)
min. fold length3.5 cm
(1.8 cm with KF 31)
Speedmax. 220 m/min
Folding machine prestigeFOLD NET 52
max. paper size52 x 85 cm
min. paper size10 x 12 cm
min. fold length3.5 cm
(1.8 cm with KF 31)
stack height of feeder66 cm
  • 20 folds are pre-programmed
  • Other folds are freely programmable
  • Program memory for 200 repetitive jobs
  • Fold units with 4 or 6 fold plates
  • Expandable up to 3 buckle fold units
  • Can be combined with mobile knife fold unit
